BANDSAW SLIDING-DOVETAIL-TENON SLED PLANS
$40.00
My solution for safely cutting clean, straight, repeatable dovetail tenons on a bandsaw… like the kind found on Roubo Workbenches with 6" x 6" legs and 5" tops. The sled is designed to cut 15 degree tenons between 1-½" - 6" wide at any depth you please (within reason of course). Smaller tenons (under 4") can be cut with the bandsaw blade encompassed within the interior cutouts while larger tenons (4"-6") can be cut by extending the component past the sled.

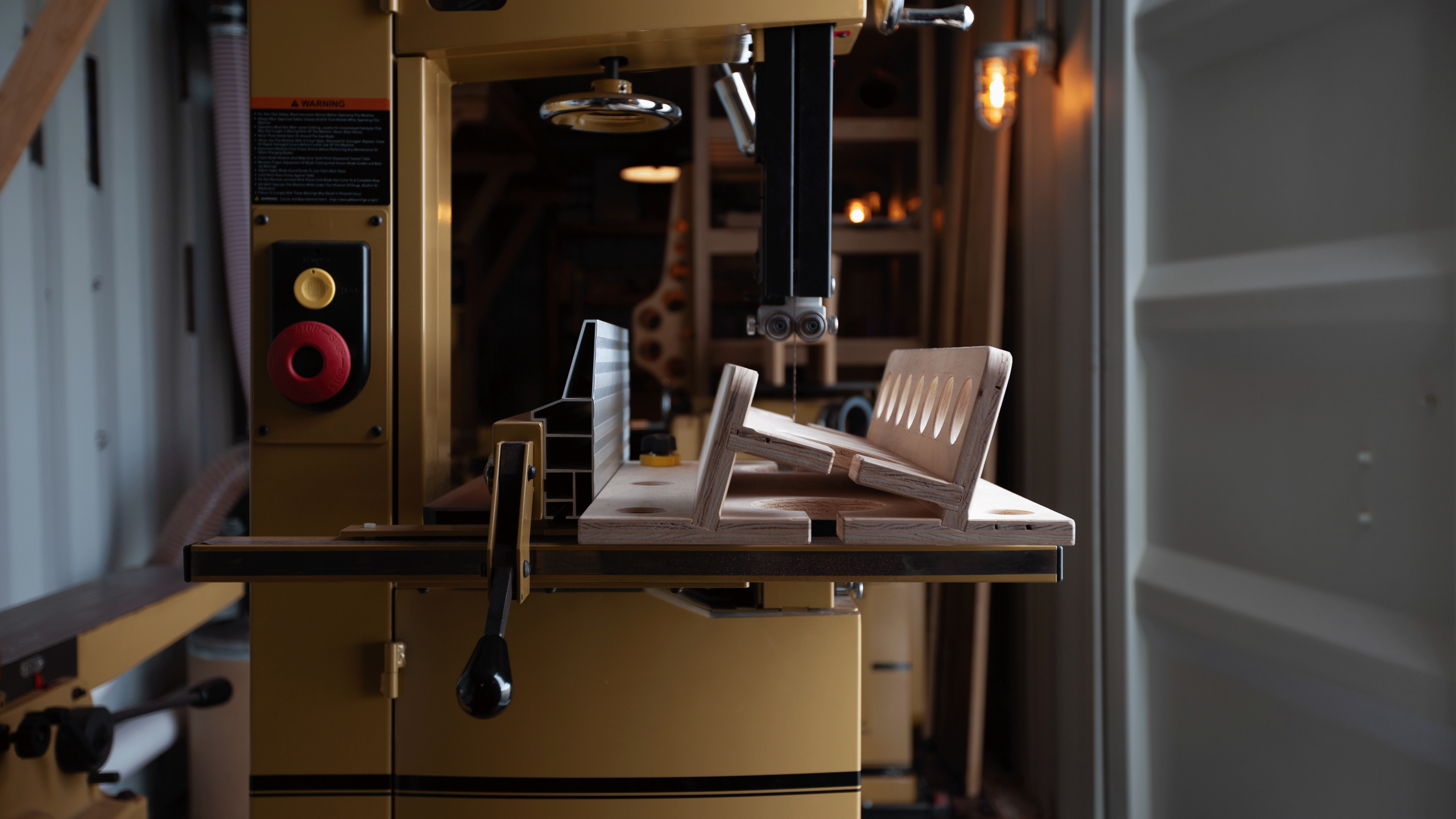

The sled rests against your bandsaw's fence and is secured to the bandsaw table with (2x) removable Magswitch MagJig 150 magnetic clamps. The sled is positioned in the location where the bandsaw blade will cut one side of the tenon. Once the cut is made, the fence is rotated 180 degrees and repositioned to make the second cut on the other side of the tenon.
WHAT'S INCLUDED

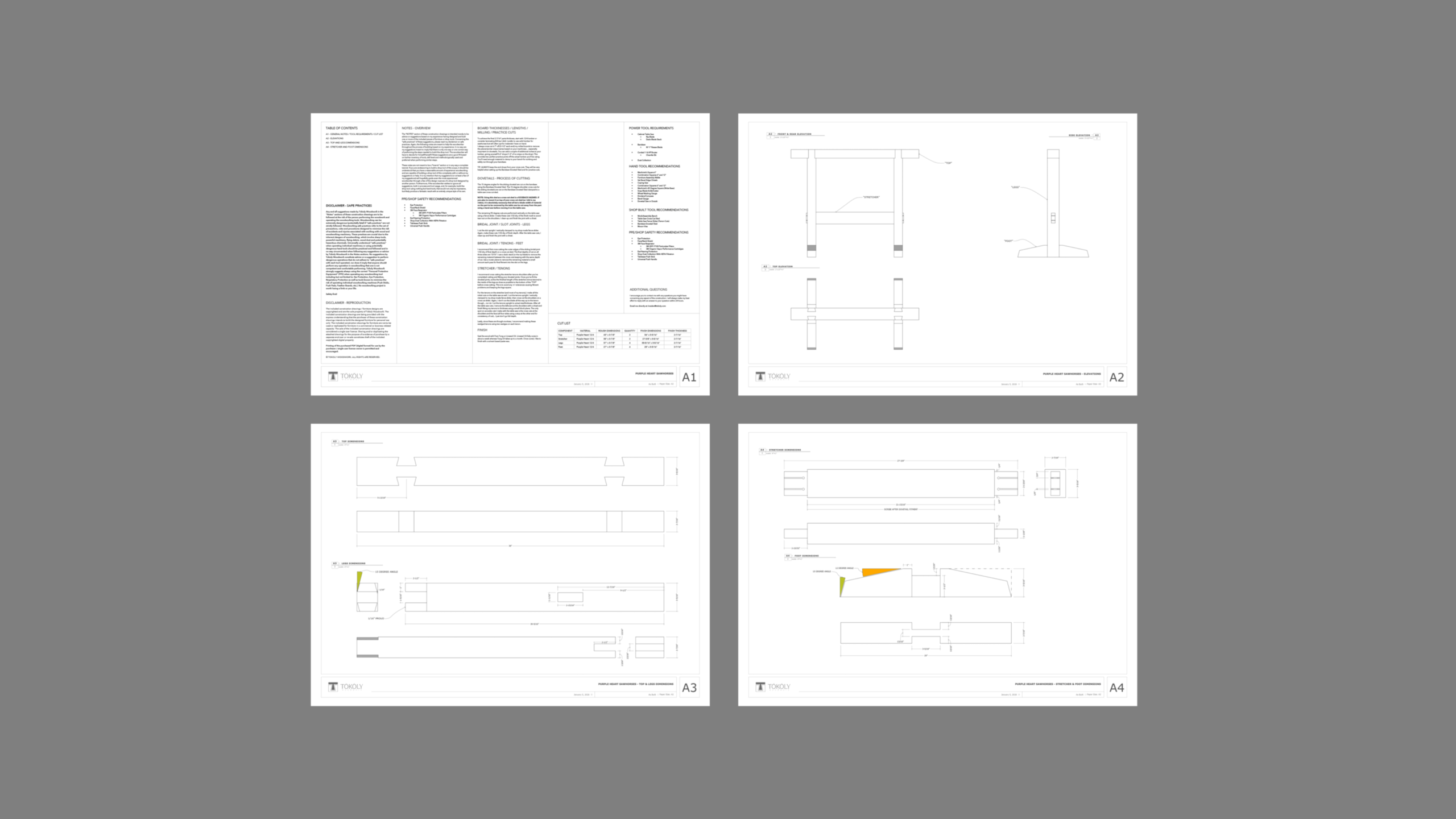

- PDF Download (A2 Sized Drawings)
- AS-BUILT Dimensions and Construction Details
- Materials Take-Off
- Cut List For All Components
- Detailed Designer's / Builder's Notes
- Power, Hand and Shop-Built Tool Recommendations
- My Email for any questions during the process of building the bench
DISCLAIMER
The included construction drawings / furniture designs are copyrighted and are the sole property of Tokoly Woodwork. The included construction drawings are being provided with the express understanding that the purchaser of these construction drawings intends to build the designed furniture for personal use only. The included construction drawings for furniture are not to be used or replicated for furniture in a commercial or business related capacity. The sale of the included construction drawings are considered a single user license. Sharing and/or duplicating the attached drawings for the purpose of avoidance of purchase by a separate end-user or re-sale constitutes theft of the included copyrighted digital property.
Printing of the purchased PDF (digital format) for use by the purchaser / single user license owner is permitted and encouraged.
