MITRED DOVETAIL BENCH PLANS
$200.00
Designed based on the works of the great George Nakashima, our Dovetail Bench has the quintessential Japanese minimalist aesthetic. The sleek lines are constructed using the venerable mitered dovetail joint. As attractive as they are strong, both mitered dovetail joints and the bench top are additionally supported by the through-mortise & tenon stretcher. A dovetailed tusk tenon gives additional tension to the stretcher joint while adding the final touch of decorative style.

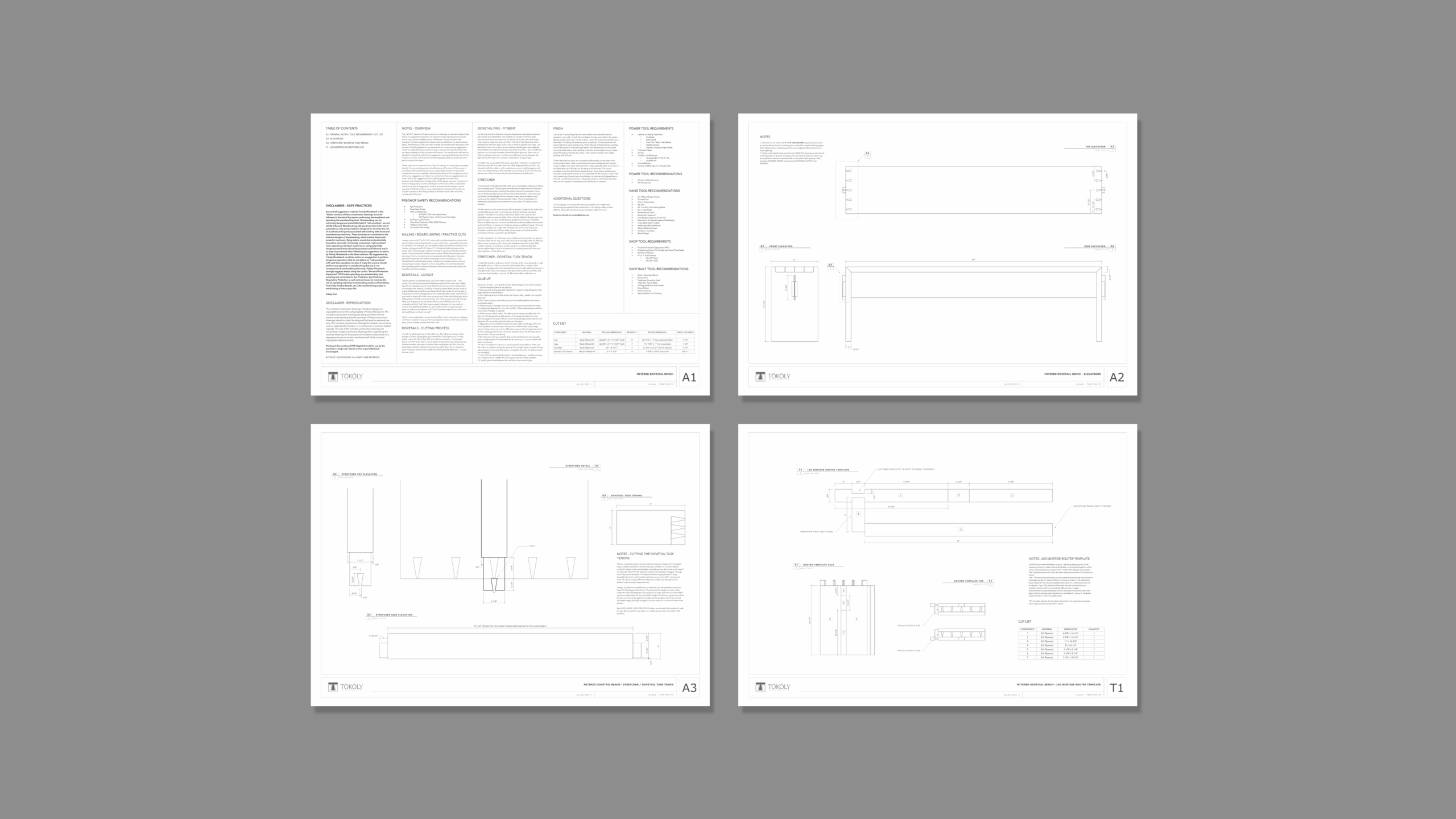

Offered are the exact drawings I use to build the Mitered Dovetail Bench. The drawings are AS-BUILT meaning that the bench has been built and all revisions that were made during the initial building process have been added / updated in the final set of drawings shown here.
WHAT'S INCLUDED
- PDF Download (A2 Sized Drawings)
- AS-BUILT Dimensions and Construction Details
- Materials Take-Off (Calculated in board feet)
- Cut List for all components including rough dimension (pre-milling cuts) and finished dimensions
- Detailed drawing for the router template used to cut the through mortises on the legs (including cut-list)
- Detailed Designer's / Builder's Notes
- Power, Hand and Shop-Built Tool Recommendations
- My Personal Email for any questions during the process of building the bench
DISCLAIMER
The included construction drawings / furniture designs are copyrighted and are the sole property of Tokoly Woodwork. The included construction drawings are being provided with the express understanding that the purchaser of these construction drawings intends to build the designed furniture for personal use only. The included construction drawings for furniture are not to be used or replicated for furniture in a commercial or business related capacity. The sale of the included construction drawings are considered a single user license. Sharing and/or duplicating the attached drawings for the purpose of avoidance of purchase by a separate end-user or re-sale constitutes theft of the included copyrighted digital property.
Printing of the purchased PDF (digital format) for use by the purchaser / single user license owner is permitted and encouraged.
