TIMBER FRAME SAWHORSES PLANS
$75.00

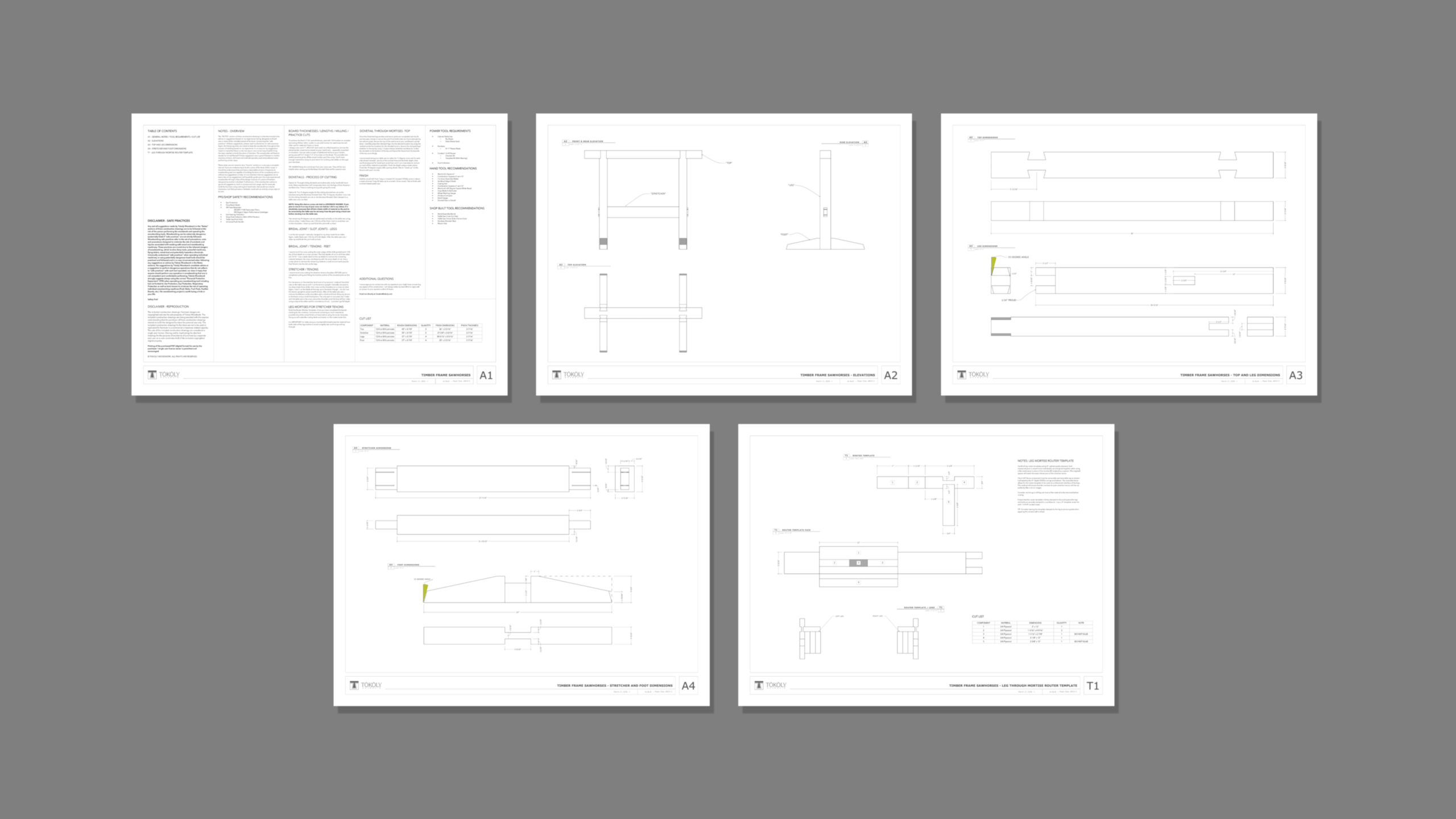

I designed and built these sawhorses for timber framing and heavy duty jobs in my shop. They are constructed using three different types of joinery. Double sliding dovetail tenons connect both legs to the top. The stretcher is connected to the legs with double wedged through mortise and tenon joints. Lastly, the legs connect to the feet by way of bridal joints. The drawings also include a detailed router template.

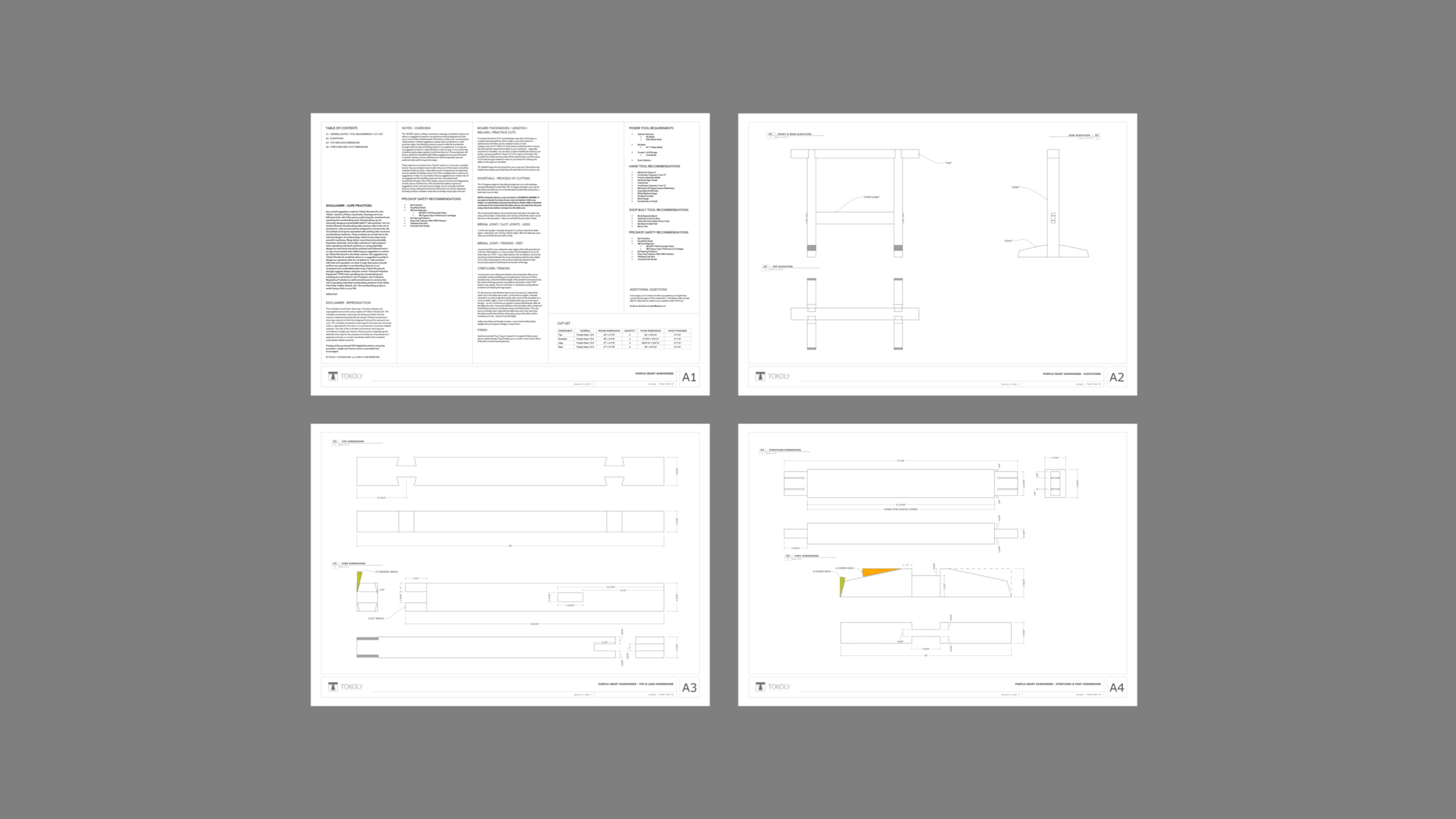

I built my sawhorses using Purple Heart for the strength and weight of the lumber. But, these sawhorses would be equally impressive and amply stout built in white oak, hard maple or a variety of other tight grained lumber species.

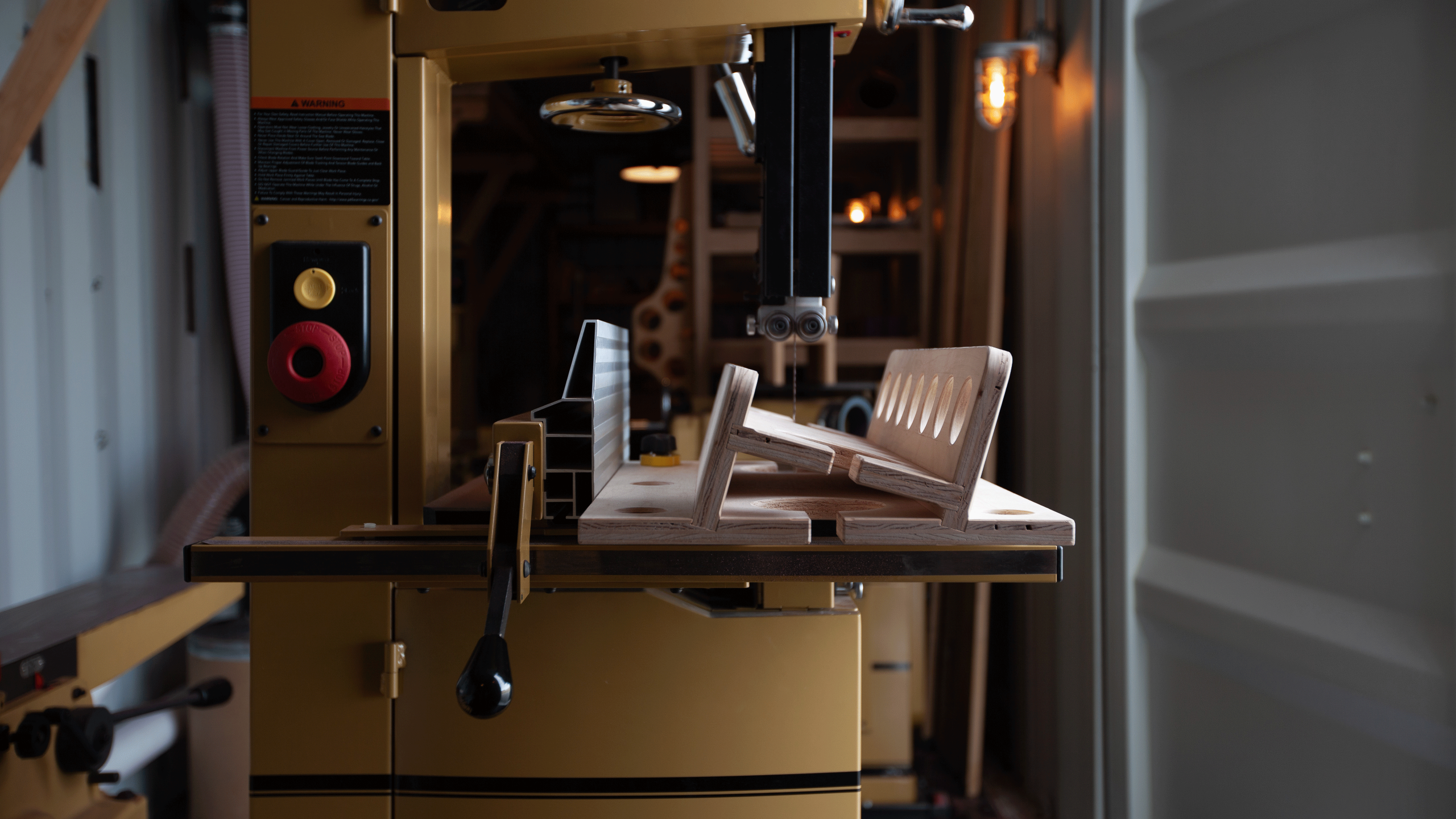

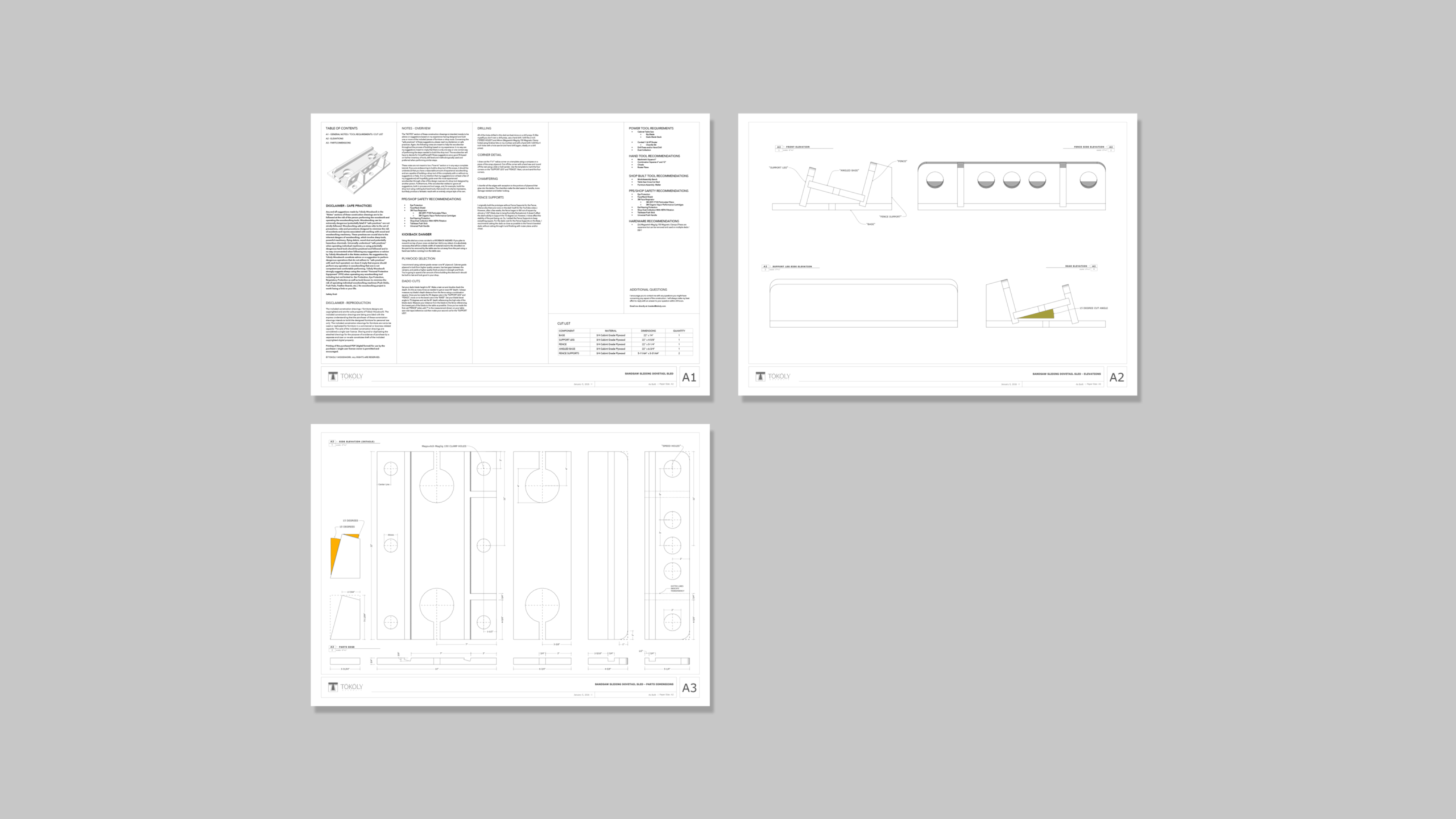

NOTE: I recommend using my Bandsaw Sliding-Dovetail-Tenon Sled to cut the sliding dovetail tenons. However, the joinery can alternatively be cut by hand the traditional way using only hand tools.
WHAT'S INCLUDED
- PDF Download (ARCH C Document Size)
- AS-BUILT Dimensions and Construction Details
- Cut List For All Components and Router Template
- Detailed Designer's / Builder's Notes
- Power, Hand and Shop-Built Tool Recommendations
- My Email for any questions during the process of building the sawhorses
DISCLAIMER
The included construction drawings / furniture designs are copyrighted and are the sole property of Tokoly Woodwork. The included construction drawings are being provided with the express understanding that the purchaser of these construction drawings intends to build the designed furniture for personal use only. The included construction drawings for furniture are not to be used or replicated for furniture in a commercial or business related capacity. The sale of the included construction drawings are considered a single user license. Sharing and/or duplicating the attached drawings for the purpose of avoidance of purchase by a separate end-user or re-sale constitutes theft of the included copyrighted digital property.
Printing of the purchased PDF (digital format) for use by the purchaser / single user license owner is permitted and encouraged.
